Thermal and Optical Bispectral PTZ Camera
+ KDV
Thermal and Optical Bispectral PTZ Camera
New

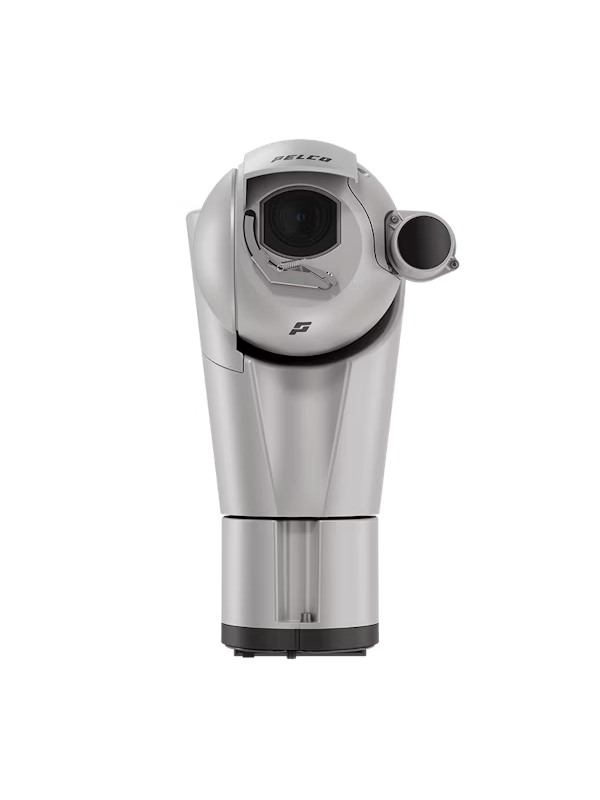

Pelco Thermal and Optical Bispectral PTZ Camera
- 1/2.8" progressive scan CMOS
- 4.25–170mm optical lens, 40x zoom,
- 1937×1097 resolution
- VGA 8.7mm–24.4mm lens in thermal,
- 640x512 12μm resolution
- H.264, H.265, Smart Compression, IP66/67/68, IK10, ONVIF
- Safe at temperatures from 40°C to 60°C (-40°F to 140°F)
ESCE1-2X40V9-RLU-1| Camera Features | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Lens | 4.25–170mm optic 8.7mm–24.4mm thermal |
| Max. Resolution | 1937×1097 VGA 640x512 |
| Shutter Speed | 1/1 to 1/10,000 s |
| WDR | 120dB |
| Video Compression Format | H.264, H.265 |
| Camera | |
| Spectral Range | 8μm to 14μm |
| Network | |
| Protocol | IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv2, ICMP, DHCP, Zeroconf, HSTS, NTCIP |
| Interface Unit | |
| Alarm Input/ Output | 2/2 |
| General Features | |
| Power Supply | External Power: •24 VDC, 24 VAC 50/60 Hz •57 VDC PoE++, 71 W max PoE: 90 W compatible with standard IEEE 802.3bt Class 8 |
| Power Consumption | 71 W max with 24 VDC aux power supply or 90 W PoE, 100 VA with 24 VAC aux power. |
| Operating Temperature | -40°C (-40°F) up to +60°C (140°F) |
| Dimension | Ø240mm × 406mm; Ø9.45”×16.0” |
| Weight | 7.4kg; 16.3lb |
| Pixel Pitch | 12μm |
